Electromagnetic Compatibility(EMC)
Schwarzbeck Automotive LISN
◾Automotive LISN acc. CISPR 25 and ISO 7637-2 and for BCI-Testing
◾BAN Broadband Artificial Networks acc. ISO 11452-7 or DC-10614
◾High Voltage LISN acc. to CISPR 25 Ed.4
◾Shielded Enclosure for Automotive LISN for CISPR 25 Ed.4
Product Details
| Single path LISN (Automotive) CISPR 25 / ISO 7637 | |||
|---|---|---|---|
| NNBM 8124 |  | Automotive LISN acc. CISPR 25 and ISO 7637-2 and for BCI-Testing Impedance (5uH + 1 Ohm) || 50 Ohm, Max. 70 (100) A, With switchable 50 Ohm load and switchable 1 mikrofarad capacitor at mains side, single path, BNC female connector Option N connector:N-female connector instead of BNC. | Data sheet |
| NNBM 8124-200 |  | Automotive LISN acc. CISPR 25 and ISO 7637-2 and for BCI-Testing, Impedance (5uH + 1 Ohm) || 50 Ohm Max.200 A, With switchable 50 Ohm load and switchable 1 mikrofarad capacitor at mains side, single path BNC female connector Option N connector: N-female connector instead of BNC | Data sheet |
| NNBM 8124-400 |  | Automotive LISN acc. CISPR 25 and ISO 7637-2 and for BCI-Testing, Impedance (5uH + 1 Ohm) || 50 Ohm Max. 400 A. With switchable 50 Ohm load and switchable 1 mikrofarad capacitor at mains side, single path BNC female connector Option N connector:N-female connector instead of BNC. | Data sheet |
| NNBM 8124-800 |  | Automotive LISN acc. CISPR 25 and ISO 7637-2 and for BCI-Testing, Impedance (5uH + 1 Ohm) || 50 Ohm Max. 800 A. With switchable 50 Ohm load and switchable 1 mikrofarad capacitor at mains side, single path BNC female connector Option N connector:N-female connector instead of BNC. | Data sheet |
| NNBM 8126 A 890 |  | LISN 5 uH || 50 Ohm 70 (100) single path, Suitable for 600V DC and 270 V AC 890 Hz Calibrated up to 400 MHz according to DO-160 | Data sheet |
| NNBM DO160-1500 |  | The main application of the unsymmetrical single path AMN (artificial mains network) NNBM DO160-1500 is the measurement of interference voltage in vehicles, aircrafts and ships in the HF-VHF range 0.1 - 400 MHz. The impedance characteristic is realized according to DO-160 and DEF-STAN-59 5 uH || 50 ¶. Max. cont. current: 200 | Data sheet |
| BAN Broadband Artificial Networks acc. ISO 11452-7 or DC-10614 | |||
| BAN 8508 |  | BAN broadband artificial network 2 A - 8 A, acc. ISO 11452-7 or DC-10614 | Data sheet |
| BAN 8530 |  | BAN broadband artificial network 8 A - 30 A, acc. ISO 11452-7 or DC-10614 | Data sheet |
| DC-Block 500 |  | DC-blocking capacitor BNC for direct injection with BAN | Data sheet |
| HV-LISN acc. to CISPR 25 Ed. 4 or BMW GS 95025-1 | |||
| NNHV 8123 |  | High Voltage LISN acc. to CISPR 25 Ed. 4 or BMW GS 95025-1 to measure the conducted disturbance voltage on shielded lines for (hybrid) electric vehicles (HEV, EV), can be used for BCI with an external dummy load impedance (5uH) || 50 Ohm 70 (100) A. 1000 V (DC) Backside with built in 0.1 microfarad capacitor to ground, N-jack Normally used in pairs inside the enclosure HVSE 8600! | Data sheet |
| NNHV 8123-200 |  | High Voltage LISN acc. to CISPR 25 Ed. 4 or BMW GS 95025-1 to measure the conducted disturbance voltage on shielded lines for (hybrid) electric vehicles (HEV, EV), can be used for BCI with an external dummy load. impedance (5uH) || 50 Ohm, 200 A, 1000 V DC, Backside with built in 0.1 microfarad capacitor to ground N-jack Normally used in pairs inside the enclosure HVSE 8600! | Data sheet |
| NNHV 8123-400 |  | High Voltage LISN acc. to CISPR 25 Ed. 4 or BMW GS 95025-1 to measure the conducted disturbance voltage on shielded lines for (hybrid) electric vehicles (HEV, EV), can be used for BCI with an external dummy load. impedance (5uH) || 50 Ohm, 400 A, 1000 V (DC) Backside with built in 0.1 microfarad capacitor to ground N-jack Normally used in pairs inside the enclosure HVSE 8600! | Data sheet |
| NNHV 8123-400R |  | The main application of the unsymmetrical single path AMN (artificial mains network) NNHV 8123-400R is for the measurement of interference voltage for electromobility purposes according to CISPR 16 1 2, CISPR 25 edition 4 or BMW GS 95025-1 in the HF-VHF range 0.1 MHz - 150 MHz utilizing shielded cables. It can also be used for BCI tests using an external 50 ? termination.Impedance: (5uH + 1 Ohm) || 50 Ohm Normally used in pairs inside the enclosure HVSE 8600! | Data sheet |
| NNHV 8123-800 |  | High Voltage LISN acc. to CISPR 25 Ed. 4 or BMW GS 95025-1 to measure the conducted disturbance voltage on shielded lines for (hybrid) electric vehicles (HEV, EV), can be used for BCI with an external dummy load. impedance (5uH) || 50 Ohm, 800 A, 1000 V (DC) Backside with built in 0.1 microfarad capacitor to ground N-jack Normally used in pairs inside the enclosure HVSE 8601! | Data sheet |
| Accessories for automotive LISN | |||
| CMDM 8700 Common mode / Differential mode switch |   | The measurement mode switch CMDM 8700 B expands the measurement possibilities of two V-LISN to T- and Delta-LISNs for the profound analysis of interference emissions. Frequency range: 9 kHz - 108 MHz Measurement modes: Line A, Line B, Common mode, Differential mode Connectors: BNC (50 Ohm) | CMDM8700 Data sheet CMDM8700B Data sheet |

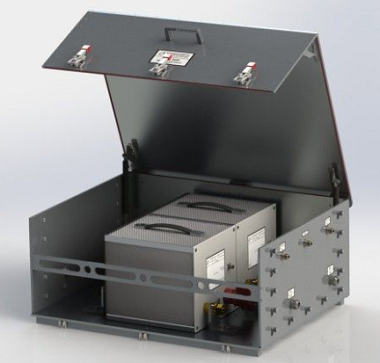

| HVSE 8600 / HVSE 8601 |   | The HVSE 8600 / HVSE 8601 Shielded Enclosure (Shielding Box) was designed to increase the shielding effectiveness of automotive LISN significantly, which is neccessary for measurements of electric- or hybrid vehicles.Material: Aluminium, Shielding Effectiveness: typ. > 100 dB, HVSE 8600 is suitable for the following LISN types: NNHV 8123, NNHV 8123-200, NNHV 8123-400, NNHV 8123-400R HVSE 8601 is suitable for NNHV 8123-800. Further Information about the application of the shielded enclosure can be found in CISPR 25 Ed. 4 or e.g. in the manufacturer specific standard BMW GS 95025-1. | HVSE8600 Data sheet HVSE8601 Data sheet |
| CAP 10 |  | To be compliant to the standards DEF STAN 59, DO 160 or MIL 461F ( Method CS 101-4; CS106-3) a 10 ÊF capacitor like the CAP 10 has to be connected to the mains connectors of the LISN. | Data sheet |
| CAP 10 8226-2 |  | To be compliant to the standards DEF STAN 59, DO 160 or MIL 461F ( Method CS 101-4; CS106-3) a 10 ÊF capacitor like the CAP 10 has to be connected to the mains connectors of the LISN. | Data sheet |
