4990EDMS-120K High Frequency Impedance Measurement System

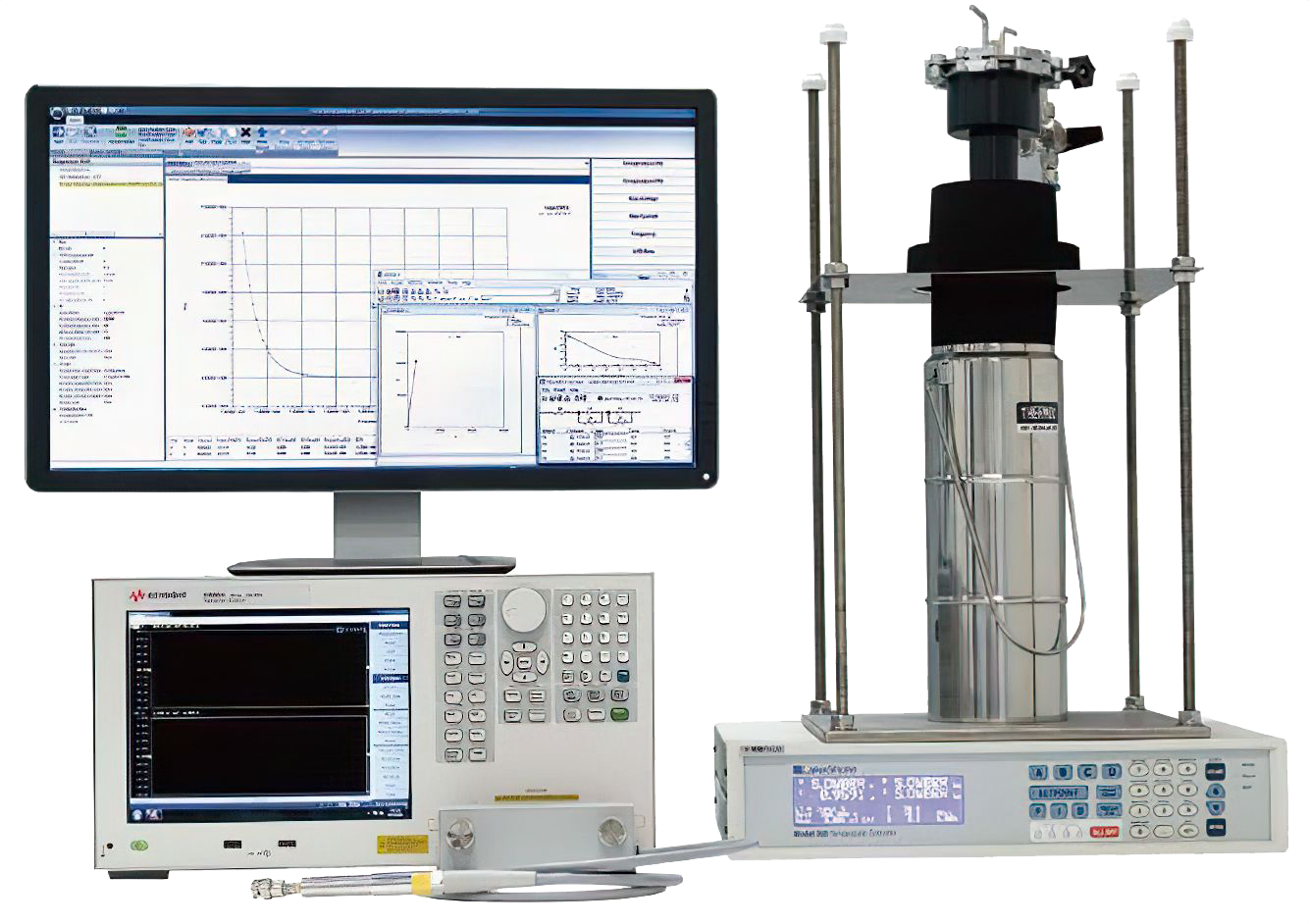

The 4990EDMS-120K is the world’s first high-frequency impedance measurement system for solid-state batteries developed by Toyo Technica (Domestic Patent No. 6324648, Chinese Patent No. CN 111226120 B). It is a device that achieves both high-frequency impedance measurement of up to 100 MHz and stable control of a wide temperature range of 80 K ~ 473 K. With this technology, it is possible to separate the impedance of the granular and grain boundaries peculiar to solid electrolytes, which could not be observed in the past, and to accurately grasp the phenomena in the electrolyte.
Features
- Wide temperature range of 80K ~ 473K
- High frequency response of 100 MHz
- Sealed and pressurized Mr./Ms. pull holders available
- Dedicated control software fully automates temperature and impedance measurements
Specifications
| Measurement Frequency Range | 20Hz to 100MHz |
|---|---|
| AC voltage | 5mVrms to 1Vrms |
| DC voltage | ± 40V |
| Correction Function | Open/Short/Load |
| Measurement range | 25mΩ to 40MΩ |
| Temperature range | 80K to 473K |
| Sample atmosphere | He gas replacement, air or gas replacement |
| Options | ・Standard sample holder ・Sealed sample holder ・Pressurized sample holder ・Overheat prevention kit |
